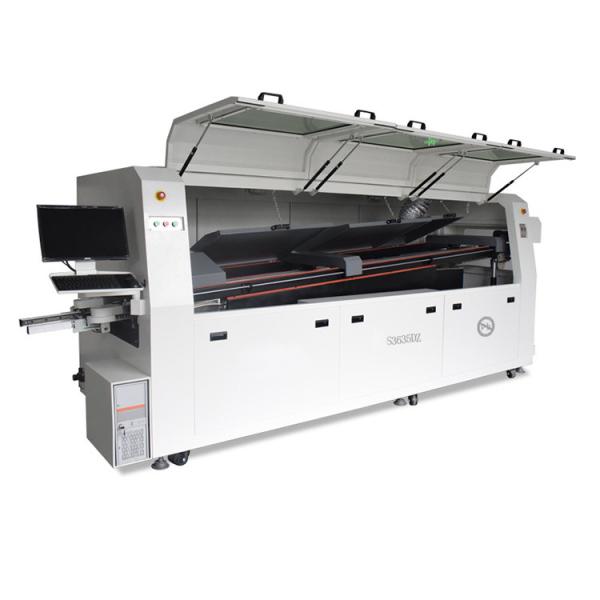

Automatic Industrial Benchtop Selective Soldering Machine Speedline Wave Solder Machine

Name: Automatic Industrial Benchtop Selective Soldering Machine Speedline Wave Solder Machine
Brand: HXT
Price: 10000 USD

China Automatic Industrial Benchtop Selective Soldering Machine Speedline Wave Solder Machine factory

Brand Name : HXT

Model Number : S3635DZ

Certification : CE

Place of Origin : China

MOQ : 1

Price : 10000 USD

Payment Terms : T/T

Supply Ability : The production capacity is 100 units a month

Delivery Time : 7-20

Packaging Details : Vacuum packing plus wooden box packing

Name : Wave Soldering Machine

Model number : S3635DZ

core components : PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

Product name : Lead free wave soldering machine

Function : Fully automatic

Usage : DIP Production Line

PCB size L*W (mm) : 450mm

Power : 3-phase 5-wire system 380V50HZ

Dimension L*W*H(mm) : 4500*1500*1750mm

Contact Now

Automatic Lead Free Soldering Machine Inline Computer Control Wave Soldering Machine For DIP Assembly Line PCB 450mm with CE certificate Preheating Length 2000mm

Description

Wave soldering machine, mainly used for electronic products plug-in welding, especially for through-hole printed circuit board (PCB-RRB- welding. This welder uses molten solders (lead-tin alloys) to form solder peaks that allow preloaded components to pass through the PCB, to realize the soft soldering of mechanical and electrical connection between the soldering end or the pin and the PCB pad.
The working principle of wave soldering machine is that the molten solders are sprayed into the required solder wave by electric or electromagnetic pump, or formed by injecting nitrogen into the solder pool. When a PCB with components passes through this solder crest, the welding process is completed.
Application Industry
LED industry: Used for welding LED pin and bottom of copper base.
Electronic products industry: such as small switches, capacitors, printing motherboard, resistors, relays, connectors and so on
Machinery parts: such as automobiles, motorcycles, ships, planes, satellites and so on.
Consumer goods such as toys, musical instruments, batteries, etc. .
Such as LSI, IC, CSP, BGA, mixed IC, etc. .
Optical products such as cameras, webcams, and so on.
Electrical products: such as television, washing machine, radio, car navigation system and so on.

Product Specification

Models	S3645DZ
Configuration	Computer control
	Heavy Claw
	Four sections of hot air heating
	Double wave
	Automatic suction flux
	Automatic cleaning of titanium claws
	Electric tin stove in and out
	Spray oscillation: Stepper motor
Number of crests	2 crests
Across the board width	30-450mm
Tin furnace capacity	450KG
Preheat length	2000mm (four temperature zone, independent control, hot air circulation)
Peak height	12mm
The over-board component foot is long	10mm
PCB board transportation height	750±20mm
Control style	Computer
Rack size	360015001650mm
Shape and size	450015001750mm
PCB board transportation speed	0-1.2m/min
Preheat zone temperature	Room temperature-180 °C
Tin oven temperature	Room temperature-300 °C
Direction of Transport	Left → Right
Temperature Control Mode	PID+SSR
Whole Machine Control Mode	Computer Control
Flux capacity	Max 5.2L
Spray method	Stepper Motor + ST-6 nozzle
Total power	22KW
Operating Power	6-10KW
Power Supply	380V 50HZ with 3-phase and 5-wire
Air Source	4-7KG/CM2 12.5L/Min
Weight	1.8T

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
